#include <rs_options.hpp>

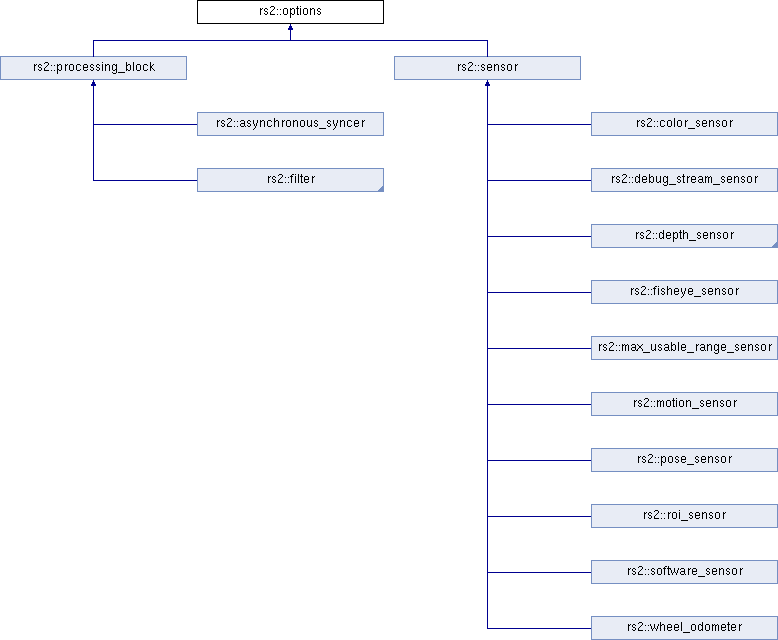

Inheritance diagram for rs2::options:

Public Member Functions
bool	supports (rs2_option option) const

const char *	get_option_description (rs2_option option) const

const char *	get_option_name (rs2_option option) const

const char *	get_option_value_description (rs2_option option, float val) const

float	get_option (rs2_option option) const

option_value	get_option_value (rs2_option option_id) const

option_range	get_option_range (rs2_option option) const

void	set_option (rs2_option option, float value) const

void	set_option_value (option_value const &value) const

bool	is_option_read_only (rs2_option option) const

void	on_options_changed (std::function< void(const options_list &) > callback) const

std::vector< rs2_option >	get_supported_options ()

options_list	get_supported_option_values ()

void	set_composite_option (rs2_composite_option_id id, const void *data, size_t size) const

std::vector< uint8_t >	get_composite_option (rs2_composite_option_id id) const

std::vector< uint8_t >	get_composite_option_range (rs2_composite_option_id id) const

template<typename T >
T	get_composite_option_as (rs2_composite_option_id id) const

template<typename TRange >
TRange	get_composite_option_range_as (rs2_composite_option_id id) const

template<typename T >
void	set_composite_option_from (rs2_composite_option_id id, const T &value) const

bool	supports_composite_option (rs2_composite_option_id id) const

bool	is_composite_option_read_only (rs2_composite_option_id id) const

const char *	get_composite_option_description (rs2_composite_option_id id) const

std::vector< rs2_composite_option_id >	get_supported_composite_options () const

options &	operator= (const options &other)

	options (const options &other)

virtual	~options ()=default

Protected Member Functions
	options (rs2_options *o=nullptr)

template<class T >
options &	operator= (const T &dev)

Constructor & Destructor Documentation

◆ options() [1/2]

rs2::options::options ( const options & other )

inline

◆ ~options()

virtual rs2::options::~options ( )

virtualdefault

◆ options() [2/2]

rs2::options::options ( rs2_options * o = nullptr )

inlineexplicitprotected

Member Function Documentation

◆ get_composite_option()

std::vector< uint8_t > rs2::options::get_composite_option ( rs2_composite_option_id id ) const

inline

read a composite option's current raw payload, atomically, in ONE UVC transaction

Parameters

[in] id composite option id to read

Returns: the option's current raw payload bytes - cast to a struct matching the option's documented wire layout

◆ get_composite_option_as()

template<typename T >

T rs2::options::get_composite_option_as ( rs2_composite_option_id id ) const

inline

typed counterpart to get_composite_option() - casts the raw payload directly into T. Validates sizeof(T) matches, and for structs with a composed dpp_header, that its version is DPP_HEADER_CURRENT_VERSION (see rs_dpp_header.h), unpopulated (0) included.

Parameters

[in] id composite option id to read

Returns: T, populated from the option's current raw payload

◆ get_composite_option_description()

const char* rs2::options::get_composite_option_description ( rs2_composite_option_id id ) const

inline

get a composite option's human-readable description

Parameters

[in] id composite option id to describe

Returns: human-readable composite option description

◆ get_composite_option_range()

std::vector< uint8_t > rs2::options::get_composite_option_range ( rs2_composite_option_id id ) const

inline

read a composite option's supported {min,max,step,def} bounds

Parameters

[in] id composite option id to read

Returns: the option's range payload bytes - cast to the range struct documented for id

◆ get_composite_option_range_as()

template<typename TRange >

TRange rs2::options::get_composite_option_range_as ( rs2_composite_option_id id ) const

inline

typed counterpart to get_composite_option_range() - casts the raw {min,max,step,def} payload into TRange. Validates sizeof(TRange); the wrapper itself has no version field, but each of its four bounds does, each checked the same way as check_version_supported().

Parameters

[in] id composite option id to read

Returns: TRange, populated from the option's raw range payload

◆ get_option()

float rs2::options::get_option ( rs2_option option ) const

inline

read option's float value

Parameters

[in] option option id to be queried

Returns: value of the option

◆ get_option_description()

const char* rs2::options::get_option_description ( rs2_option option ) const

inline

get option description

Parameters

[in] option option id to be checked

Returns: human-readable option description

◆ get_option_name()

const char* rs2::options::get_option_name ( rs2_option option ) const

inline

get option name

Parameters

[in] option option id to be checked

Returns: human-readable option name

◆ get_option_range()

option_range rs2::options::get_option_range ( rs2_option option ) const

inline

retrieve the available range of values of a supported option

Returns: option range containing minimum and maximum values, step and default value

◆ get_option_value()

option_value rs2::options::get_option_value ( rs2_option option_id ) const

inline

read option's value

Parameters

[in] option_id option id to be queried

Returns: option value

◆ get_option_value_description()

const char* rs2::options::get_option_value_description	(	rs2_option	option,
		float	val
	)		const

inline

get option value description (in case specific option value hold special meaning)

Parameters

[in]	option	option id to be checked
[in]	val	value of the option

Returns: human-readable description of a specific value of an option or null if no special meaning

◆ get_supported_composite_options()

std::vector< rs2_composite_option_id > rs2::options::get_supported_composite_options ( ) const

inline

Returns: the list of composite option ids this options object (sensor or embedded_filter) supports

◆ get_supported_option_values()

options_list rs2::options::get_supported_option_values ( )

inline

◆ get_supported_options()

std::vector<rs2_option> rs2::options::get_supported_options ( )

inline

◆ is_composite_option_read_only()

bool rs2::options::is_composite_option_read_only ( rs2_composite_option_id id ) const

inline

check if a composite option is read-only

Parameters

[in] id composite option id to be checked

Returns: true if the composite option is read-only

◆ is_option_read_only()

bool rs2::options::is_option_read_only ( rs2_option option ) const

inline

check if particular option is read-only

Parameters

[in] option option id to be checked

Returns: true if option is read-only

◆ on_options_changed()

void rs2::options::on_options_changed ( std::function< void(const options_list &) > callback ) const

inline

sets a callback in case an option in this options container value is updated

Parameters

[in] callback the callback function

◆ operator=() [1/2]

options& rs2::options::operator= ( const options & other )

inline

◆ operator=() [2/2]

template<class T >

options& rs2::options::operator= ( const T & dev )

inlineprotected

◆ set_composite_option()

void rs2::options::set_composite_option	(	rs2_composite_option_id	id,
		const void *	data,
		size_t	size
	)		const

inline

See rs_composite_option.h for the underlying C API and atomicity contract (one UVC transaction per call) - these methods just forward to the corresponding rs2_* function. write new value to a composite option, atomically, in ONE UVC transaction

Parameters

[in]	id	composite option id to write
[in]	data	pointer to the caller's struct matching the option's documented wire layout
[in]	size	sizeof(...) of the caller's struct

◆ set_composite_option_from()

template<typename T >

void rs2::options::set_composite_option_from	(	rs2_composite_option_id	id,
		const T &	value
	)		const

inline

typed counterpart to set_composite_option() - sends value itself. For structs carrying a header.version field, rejects a value whose version isn't current - most likely a get-modify-set that left the header zero-initialized.

Parameters

[in]	id	composite option id to write
[in]	value	the caller's struct matching the option's documented wire layout

◆ set_option()

void rs2::options::set_option	(	rs2_option	option,
		float	value
	)		const

inline

write new value to the option

Parameters

[in]	option	option id to be queried
[in]	value	new value for the option

◆ set_option_value()

void rs2::options::set_option_value ( option_value const & value ) const

inline

write new value to the option

Parameters

[in]	option	option id to be queried
[in]	value	option (id,type,is_valid,new value)

◆ supports()

bool rs2::options::supports ( rs2_option option ) const

inline

check if particular option is supported

Parameters

[in] option option id to be checked

Returns: true if option is supported

◆ supports_composite_option()

bool rs2::options::supports_composite_option ( rs2_composite_option_id id ) const

inline

check if particular composite option is supported (and currently enabled)

Parameters

[in] id composite option id to be checked

Returns: true if the composite option is supported

The documentation for this class was generated from the following file:

C:/jenkins_sys_rsbuild/workspace/LRS_doxygen_pipeline/source/include/librealsense2/hpp/rs_options.hpp
